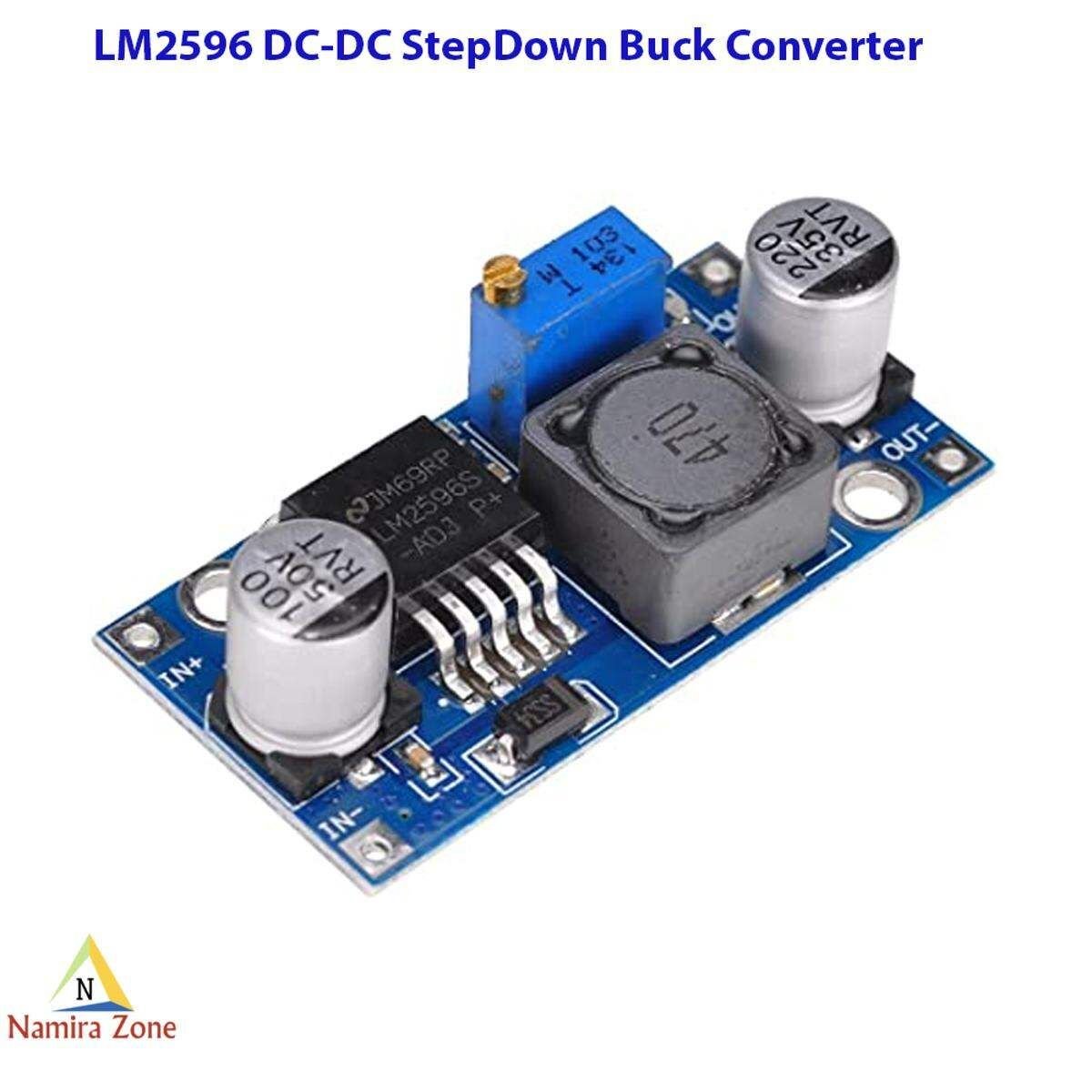

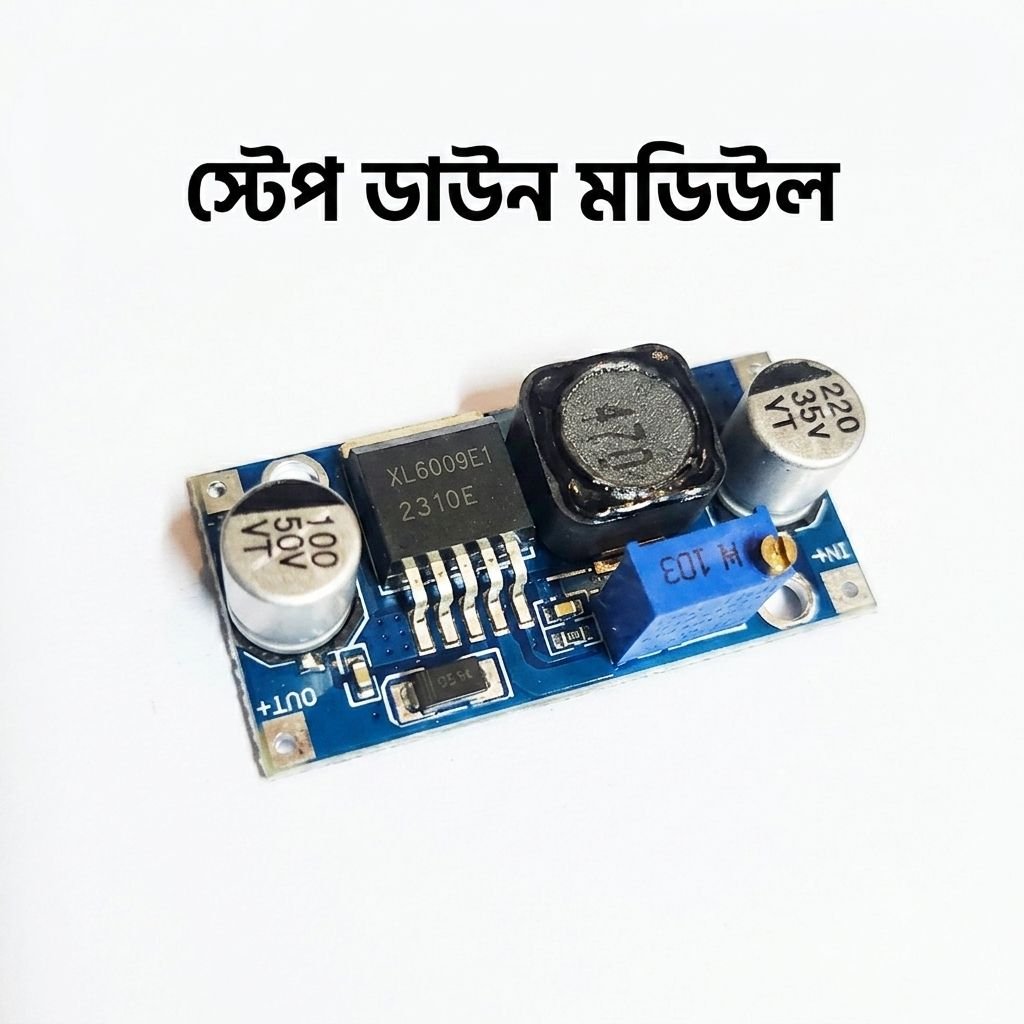

DC-DC Step Down Converter Module. This is a high-performance electronic component used to take a lower DC input voltage adjustable DC output voltage.
SKU: 1842023_Tool_112 | Brand:
৳89
৳121
- Input Voltage: 3.2V - 40VDC
- Output Voltage: 1.25V - 35VDC
- Max. Output Current: 3A
- Max. Efficiency: 92%
- Output Ripple: ≤100mV
- Switching Frequency: 65KHz
- Input voltage range:4 40VDC
- Output voltage range:1.25-37VDC adjustable
- Output current:2A
- voltmeter range: 0 to 40V, error 0.1V
- Input reverse polarity protection
- Built in output short protection function
- Built in thermal shutdown function
- L x W x H =6.1*3.4*12 cm
- Weight: 22g
- LED digital voltmeter tube, the accuracy is adjustable function, can be aimed at your multimeter adjustable accurate.
- Press the right key to let the display show the input or output voltage. when the right OUT led light, it shows output, the left IN led show input.
- Input Voltage: 3.2V - 40VDC
- Output Voltage: 1.25V - 35VDC
- Max. Output Current: 3A
- Max. Efficiency: 92%
- Output Ripple: ≤100mV
- Switching Frequency: 65KHz
