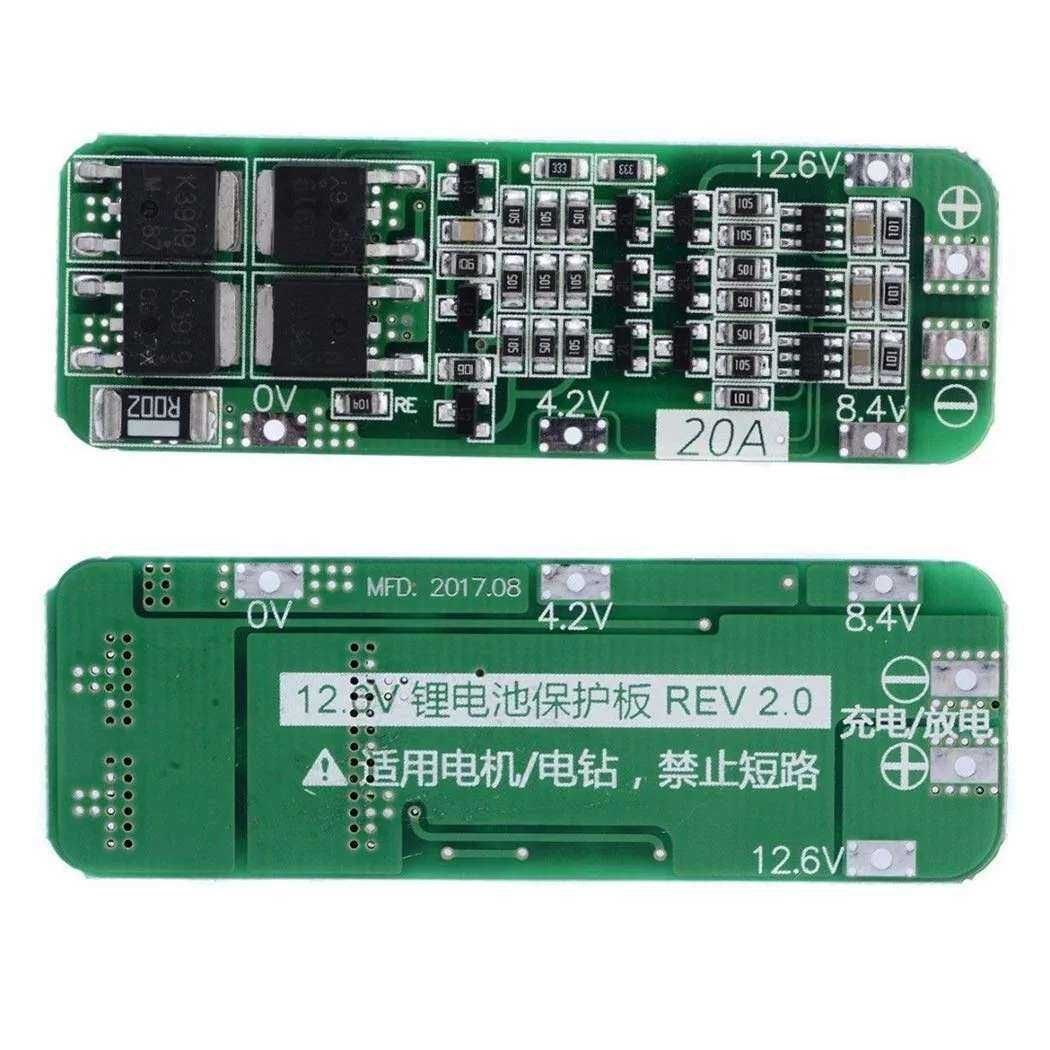

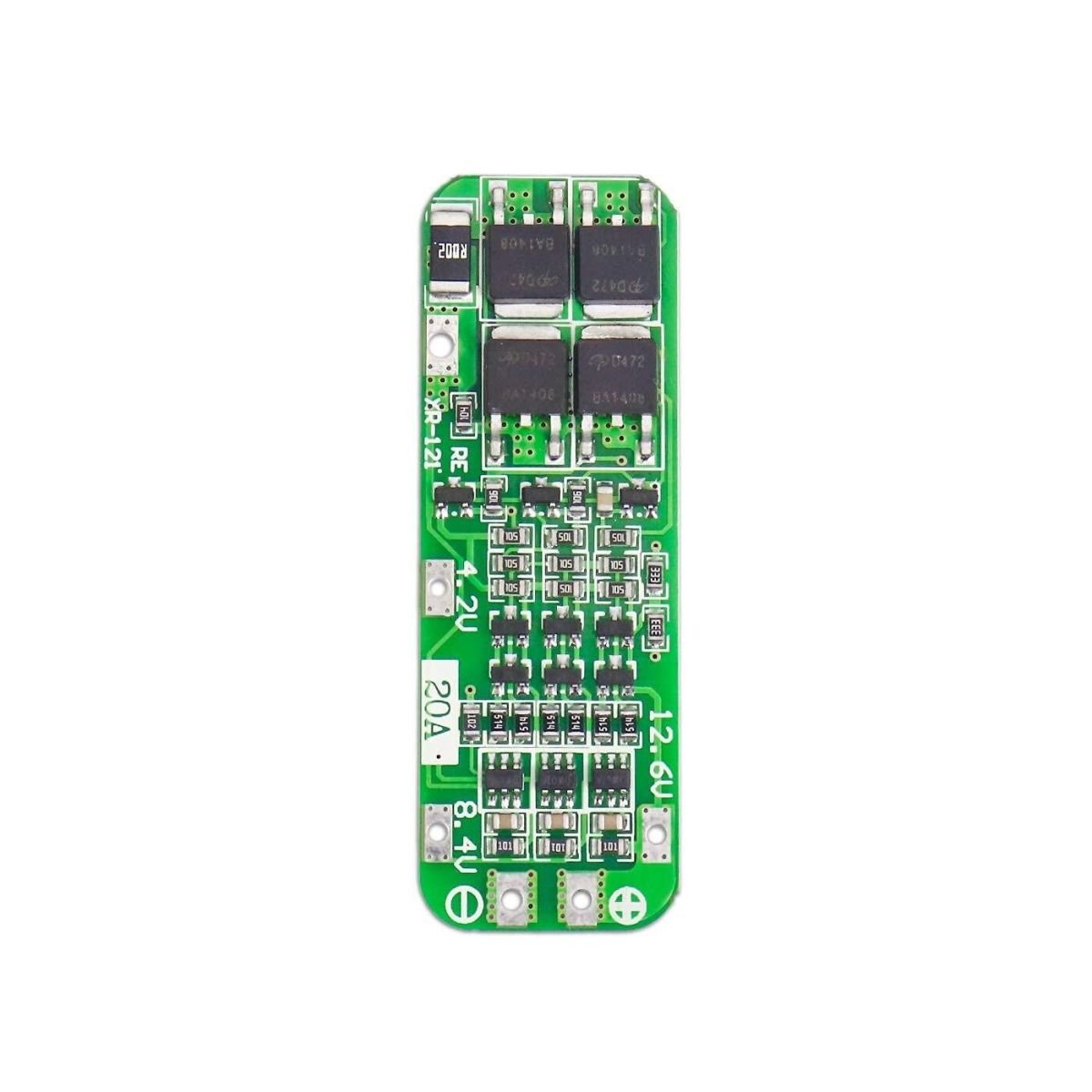

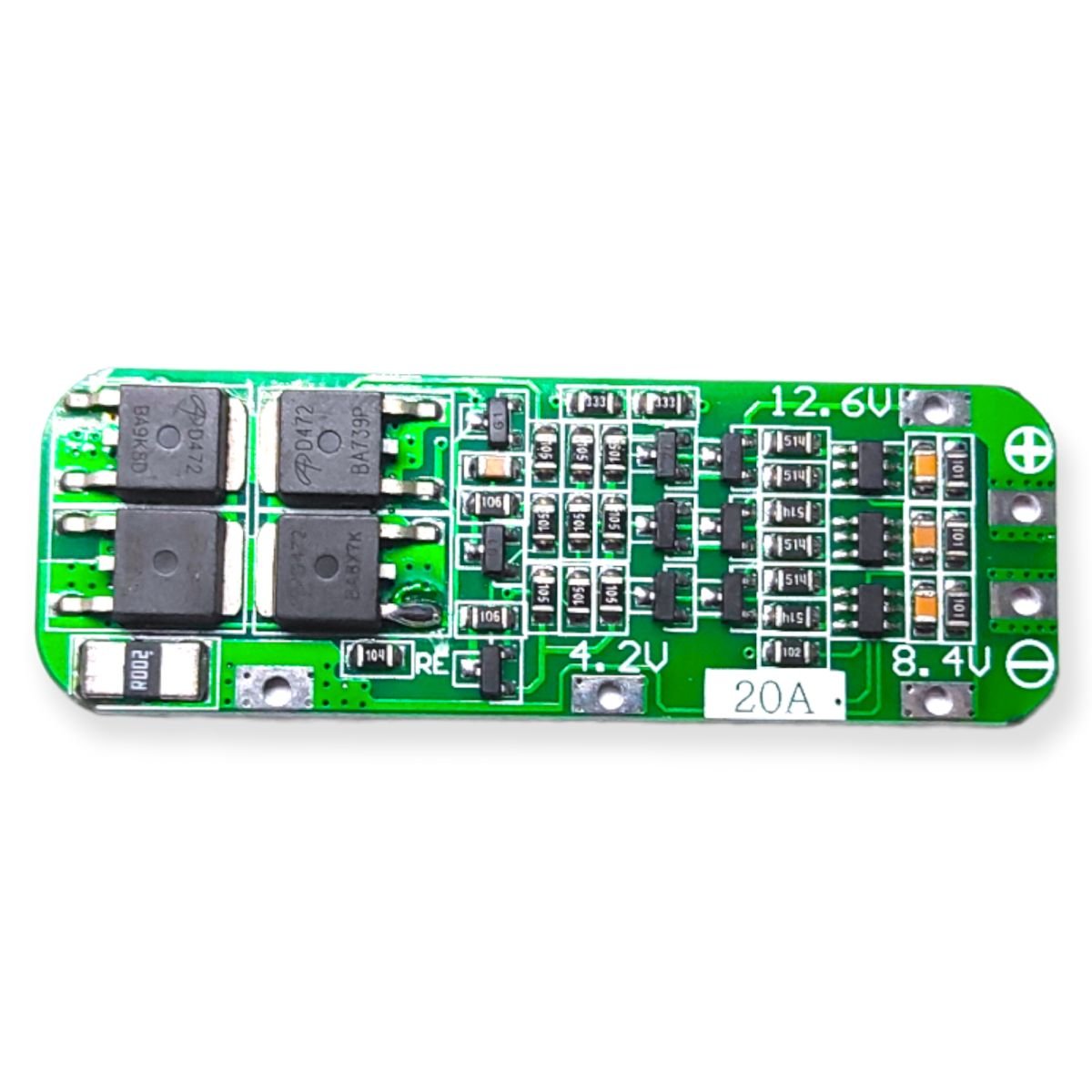

- 3S 11.1V 12.6V 20A 18650 lithium battery protection board
- Application: Nominal voltage of 3.6V, 3.7V lithium battery
- Continuous discharge current (upper limit): 20A
- Continuous charge current (upper limit): 20A.
- Self consuming current 24 uA
- Overcharge protection voltage 4.3v(max)
- Over dis-charge protection voltage 2.6(max)
- Over current protection current 60A(max)
- Environment temperature -40°c to 85°c
- Continue work power 252W (max)
