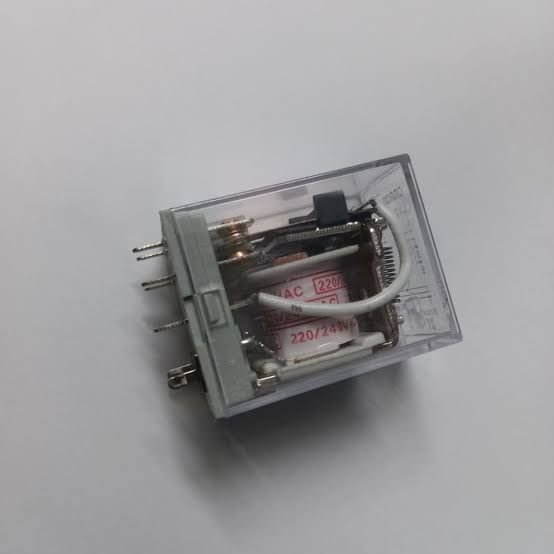

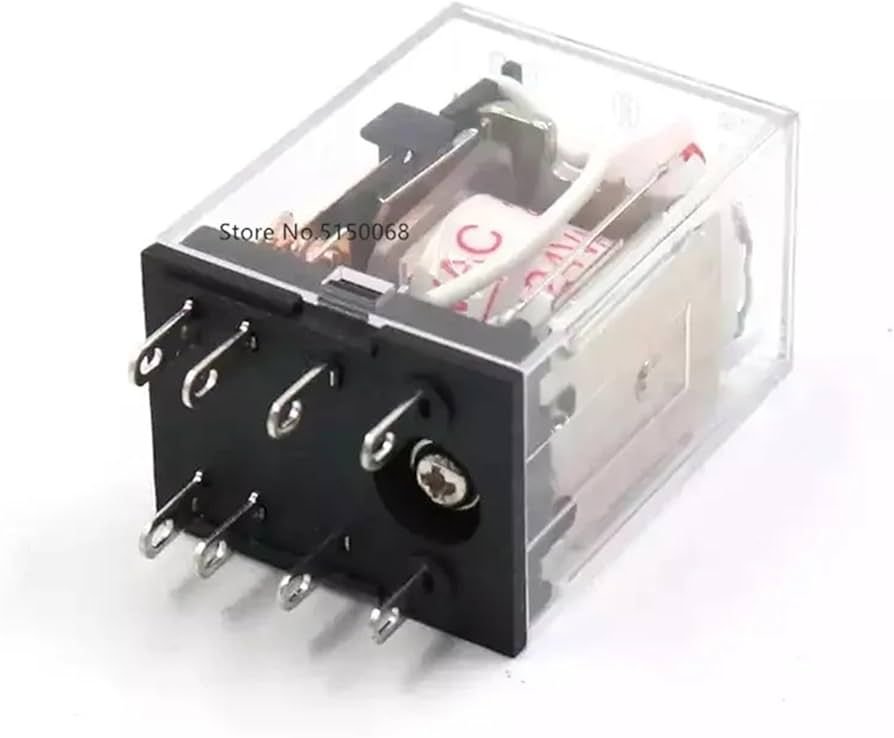

OMR-ON Thin Pin DC 24V 8 Thin Pin 10A 250VAC Glass Relay LY2 LY2NJ JQX-13F DC24V Coil Power Relay Electromagnetic Relay 8 Pins DPDT 2NO 2NC DC-24V Relay
SKU: 1842023_Tool_446 | Brand:
৳208
৳275
- Product Name : Power Relay
- Material: Electronic Component
- Production: Mini Medium Electromagnetic Relay
- Relay Model No. : LY2/ LY2NJ/ JQX-13F/ Any
- Thin 8 pins 2NO + 2NC
- Current: 10A
- Contacts: Silver Plated Gold
- Coil voltage: DC 24V
- Contact capacity: 10A 250VAC, 10A 28VDC
- Pull-in voltage: ≤80% (V)
- Release voltage: DC: ≥10% (V), AC: ≥30%
- Contact resistance: ≤50 (mΩ)
- Insulation resistance: ≤100 (mΩ)
- Terminals form: Socket
- Action time: 20ms or less
- Reset Time: 20ms or less
- Operating frequency:
- Mechanical 18,000 cycles / hour
- Electrical 18,000 times / hour
Product Name : Power Relay.- Coil Volt: 220vac.
- Material: Electronic Component
- Production: Mini Medium Electromagnetic Relay
- Relay Model No. : LY2/ LY2NJ/ JQX-13F/ Any
- Thin 8 pins 2NO + 2NC
- Current: 10A
- Contacts: Silver Plated Gold
- Coil voltage: DC 24V
- Contact capacity: 10A 250VAC, 10A 28VDC
- Pull-in voltage: ≤80% (V)
- Release voltage: DC: ≥10% (V), AC: ≥30%
- Contact resistance: ≤50 (mΩ)
- Insulation resistance: ≤100 (mΩ)
- Terminals form: Socket
- Action time: 20ms or less
- Reset Time: 20ms or less
- Operating frequency:
- Mechanical 18,000 cycles / hour
- Electrical 18,000 times / hour
