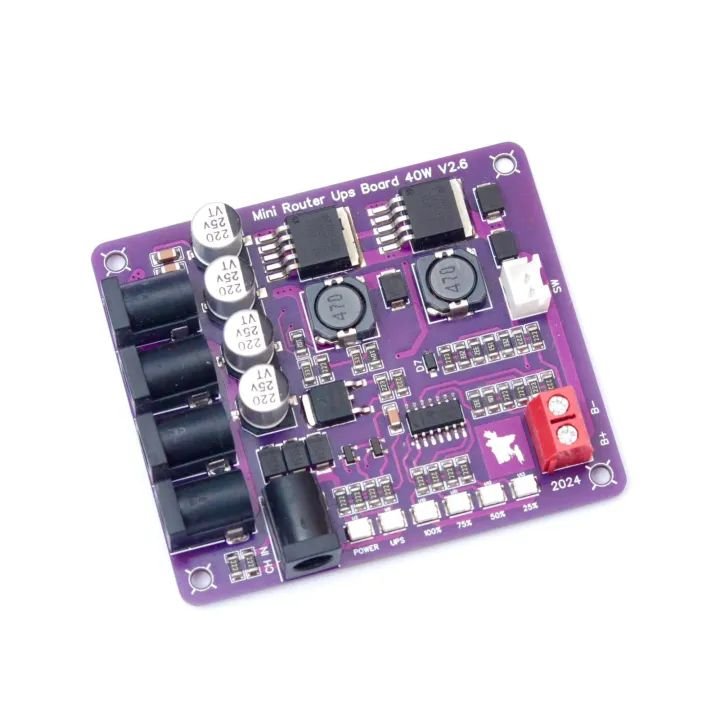

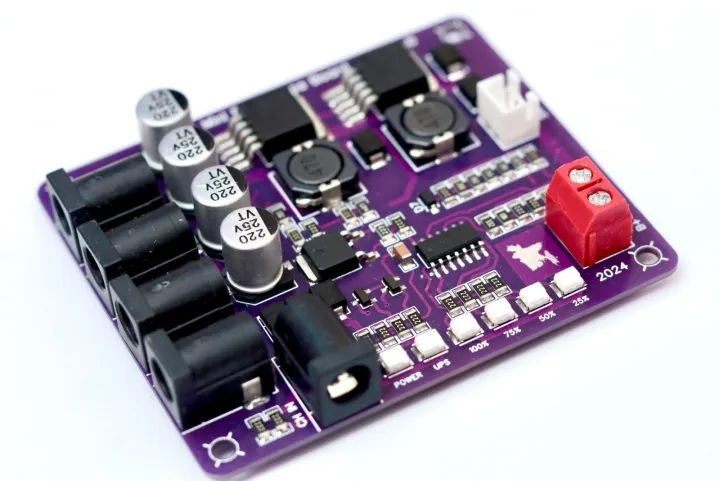

Product details of Top mini UPS circuit Mini Router Circuit Board 40W V2.6
- UPS+Switch
- Maximum 47.5W Output
- Port 1 – 12V 1.5A Output.
- Port 2 – 12V 1.5A Output.
- Port 3 – 9V 2A Output.
- Port 4 – 5V 2A Output.
- 12.6V-13.0V (2A-5A) Input Power.
- Short Circuit Protection.
- High Voltage Protection.
- +, – Polarity Protection.
- Output Voltage tolerance (+, -)0.05.
- Battery percentage Indicator 100%, 75%, 50% & 25%.
- ALL SMD Component.
- Output Overvoltage Protection.
- 99% Output accuracy.
- Thunder protection.
- Battery input -11.1v (3S LIPO 18650 battery)
- Battery full Charge Voltage 12.6V
- Battery Low Voltage 10.5V
Product details of Top mini UPS circuit Mini Router Circuit Board 40W V2.6
- UPS+Switch
- Maximum 47.5W Output
- Port 1 – 12V 1.5A Output.
- Port 2 – 12V 1.5A Output.
- Port 3 – 9V 2A Output.
- Port 4 – 5V 2A Output.
- 12.6V-13.0V (2A-5A) Input Power.
- Short Circuit Protection.
- High Voltage Protection.
- +, – Polarity Protection.
- Output Voltage tolerance (+, -)0.05.
- Battery percentage Indicator 100%, 75%, 50% & 25%.
- ALL SMD Component.
- Output Overvoltage Protection.
- 99% Output accuracy.
- Thunder protection.
- Battery input -11.1v (3S LIPO 18650 battery)
- Battery full Charge Voltage 12.6V
- Battery Low Voltage 10.5V
Specifications of Top mini UPS circuit Mini Router Circuit Board 40W V2.
This is Quality full board. One of the best UPS Router board in Bangladesh (Made in Bangladesh).
International Quality, This board main features Router wont restart and high voltage output protection
All Component are SMD because lots of Components in small space that’s why the best solution is SMD.
